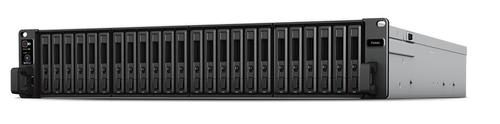

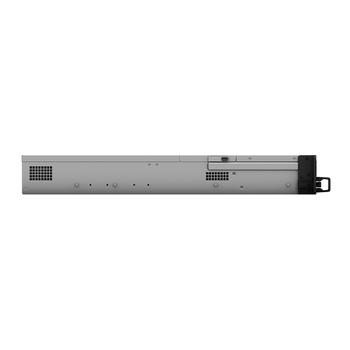

SYNOLOGY FlashStation FS6400 - NAS server - 24 bays - rack-mountable - RAID 0, 1, 5, 6, 10, JBOD, RAID F1 - RAM 32 GB - Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 2U

FlashStation FS6400

• Synology all-flash server targeted at I/O-intensive and latency-sensitive applications
• Over 240,000 iSCSI 4K Random Write IOPS, ultra-high performance with low latency
• Dual Intel® Xeon® Silver 8-core processors and 32GB DDR4 ECC RDIMM, expandable up to 512GB
• Onboard 10GBASE-T ports, capable of installing optional 10GbE/25GbE/40GbE NICs
• Complete virtualization solution for VMware® vSphere, Windows Server® Hyper-V™, Citrix® XenServer, and OpenStack® Cinder
• Advanced Btrfs file system offering 65,000 system-wide snapshots and 1,024 snapshots per shared folder
• Scale up to 72 drives with 2 x Synology expansion unit RX2417sas

• CPU Model Intel Xeon Silver 4110
• CPU Quantity 2
• CPU Architecture 64-bit
• CPU Frequency 8-core 2.1 (base) / 3.0 (turbo) GHz
• Hardware Encryption Engine (AES-NI) Yes

• System Memory 32 GB DDR4 ECC RDIMM
• Memory Module Pre-installed 32 GB (16 GB x 2)
• Total Memory Slots 16
• Maximum Memory Capacity 512 GB (32 GB x 16)

• Drive Bays 24
• Maximum Drive Bays with Expansion Unit 48 (RX1217sas x 2) / 72 (FX2421 x 2)
• Compatible Drive Type
  • 2.5" SAS HDD
  • 2.5" SAS SSD
  • 2.5" SATA SSD
• Hot Swappable Drive Yes

• RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
• RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
• USB 3.2 Gen 1 Port 2
• Expansion Port 1

• PCIe Expansion 2 x Gen3 x8 slots (x8 link)

• Internal Drives Btrfs, EXT4
• External Drives Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT

• Form Factor (RU) 2U
• Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
• Weight 17.26 kg
• Rack Installation Support 4-post 19" rack

• System Fan 80 mm x 80 mm x 4 pcs
• Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
• Easy Replacement System Fan Yes
• Power Recovery Yes
• Noise Level 53.7 dB(A)
• Scheduled Power On / Off Yes
• Wake on LAN / WAN Yes
• Power Supply Unit / Adapter 800 W
• Redundant Power Supply Yes
• AC Input Power Voltage 100V to 240V AC
• Power Frequency 50/60 Hz, Single Phase
• Power Consumption 288.49 W (Access), 145.8 W (HDD Hibernation)
• British Thermal Unit 984.37 BTU/hr (Access), 497.49 BTU/hr (HDD Hibernation)

• Operating Temperature 0°C to 35°C (32°F to 95°F)
• Storage Temperature -20°C to 60°C (-5°F to 140°F)
• Relative Humidity 5% to 95% RH

• FCC
• CE
• BSMI
• EAC
• KC
• VCCI
• RCM

• 5 Years


• RoHS Compliant
• Packaging Content
• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 2
• Quick Installation Guide X 1
