Sharp / NEC E758 | 75"" | 3840x2160 | 350Nits | 16/7 | Built-in speaker |

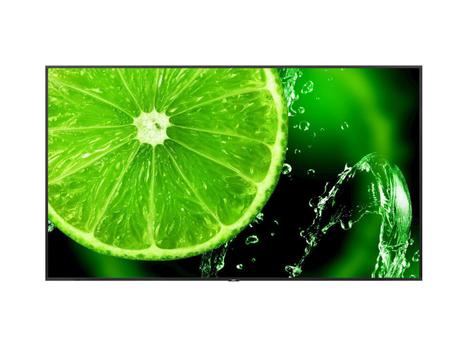

MultiSync® E758 LCD 75" Essential Large Format Display

• Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
• Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
• Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
• Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality.
• Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.

• Panel Technology IPS with Direct LED backlights
• Active Screen Area (W x H) [mm] 1,649.7 x 927.9
• Screen Size [inch/cm] 74.5 / 189.3
• Aspect Ratio 16:9
• Pixel Pitch [mm] 0.430
• Brightness [cd/m²] 350
• Contrast Ratio ≥ 8000:1 1
• Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
• Colour Depth [bn] 1.073 (10bit)
• Response Time (typ.) [ms] 8
• Panel Refresh Rate [Hz] 60
• Haze Level [%] Pro (25)
• Supported Orientation Landscape; Portrait

• Horizontal Frequency [kHz] 15 - 136
• Vertical Frequency [Hz] 24 - 75

• Native Resolution 3840 x 2160
• Supported Resolutions
• 1280 x 720;
  • 1920 x 1080;
  • 1920 x 1200;
  • 3840 x 2160;
  • 4096 x 2160;
  • 640 x 480;
  • 720 x 480;
  • 720 x 576

• Input Video Analogue 1 x VGA; Component (RCA); Composite (RCA)
• Input Video Digital 3 x HDMI
• Input Audio Analogue 1 x 3,5 mm jack
• Input Audio Digital 3 x HDMI
• Input Control LAN 100Mbit; RS232
• Input Data 1 x USB 2.0 (MediaPlayer); 1 x USB Typ-C (5V/3A, power for external devices)
• Output Audio Analogue 1 x 3,5 mm jack
• Output Audio Digital 1 x SPDIF
• Remote Control Remote Control IR; RS-232C (9-pin D-sub) Input

• Ambient Light Sensor Integrated, triggered actions programmable

• Power Consumption Eco/max. [W] 145 shipping
• Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
• Power Supply 100-240 V AC; 50/60 Hz; internal

• Operating Temperature [°C] +0 to +40
• Operating Humidity [%] 20 to 80
• Storage Humidity [%] 10 to 90
• Storage Temperature [°C] -20 to +60

• Dimensions (W x H x D) [mm] Without stand: 1,682.3 x 961.1 x 83.2
• Weight [kg] Without stand: 36.3
• Bezel Width [mm] 14.3 (left, right and top); 14.8 (bottom)
• VESA Mounting [mm] 4 holes; 600 x 400 (FDMI); M8
• Material Metal

• Supported File Storage / File System USB 2.0 / FAT16, FAT32
• Supported Image Formats JPG (baseline, progressive, RGB, CMYK); max. resolution 15360 x 8640
• Supported Video Formats MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
• Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s

• Accessories Feet (ST-801); Trolley (L20PNSR780MEU); Wall mount (L20PNWALL90EU); Wall mount (SF680P)

• Energy Efficiency Energy consumption: 128 kWh/1000 h; Energy efficiency class: G; LED backlight
• Ecological Standards EnergyStar 8.0

• Special Characteristics Ambient Light Sensor; Audio settings with equalizer; CEC Support; Colour temperature mode; Display Browser Control; Energy saving picture mode; HDMI with UHD at 60 Hz; HDR Gamma Support (HLG, PQ); Mac and Windows compatible; NaViSet Administrator 2; Powered USB-Port; Retail picture mode; Scheduler; SNMP Support; USB Media Player
• Colour Versions Black Front Bezel, Black Back Cabinet
• Safety and Ergonomics EMC Class B; Energy Star 8; FCC; PSB; RCM; TÜV S; UL/C-UL; VCCI
• Audio Integrated Speakers (10 W + 10 W)
• Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
• Warranty 3 years warranty incl. backlight
• Operating Hours 18/7
• External Control Crestron Connected
