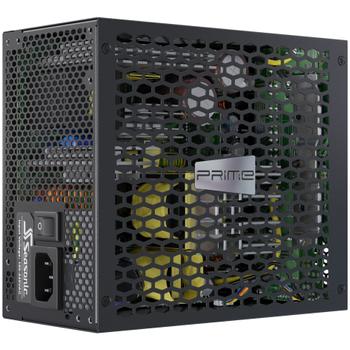

SEASONIC PSU PRIME - 700W - 80+Titanium Fanless

PRIME FANLESS TX 700W

• The PRIME Fanless TX Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.
• Warranty 12 Years
• Cabling Fully Modular
• Dimensions 170 mm (L) x 150 mm (W) x 86 mm (H)
• Design True Fanless

• Titanium

• Titanium

• A++

• ATX/EPS

• 170 × 150 × 86 mm

• Fan Size Fanless

• Modularity Fully Modular
• Cable type Webbed cables (MB, CPU, PCIe) - Flat Black Cables

• Operating Temperature 0 - 45 °C (derating from 100 % to 80% from 40 °C to 45 °C linearly)
• MTBF @ 25 °C, excl. fan 100,000 hours
• AC Input Full Range
• Protection OPP, OVP, UVP, OCP, OTP, SCP

• Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH

• 12 Years

• 100 V - 240 V
• 9 - 4.5 A
• 50 Hz - 60 Hz

• +3.3 V / 20 A
• +5 V / 20 A
• +12 V / 58 A
• -12 V / 0.3 A
• +5 VSB / 3 A

• 700 W

• MB (24/20 pins) 610 mm 1 connector 1 cable
• CPU (8/4 pins) 650 mm 1 connector 2 cables
• PCIe (8/6 pins) 750 mm 1 connector 4 cables
• SATA 810 mm 4 connectors 1 cable
• SATA 860 mm 4 connectors 1 cable
• SATA 450 mm 2 connectors 1 cable
• Molex 690 mm 3 connectors 1 cable
• Molex 470 mm 2 connectors 1 cable
• Molex to SATA 3.3 Adapter 300 mm 2 connectors 1 cable
