MULTIBRACKETS M VESA Flexarm Tilt+Turn II 26-42"
|
|
MULTIBRACKETS M VESA Flexarm Tilt+Turn II 26-42"
LEASING
(ekskl. mva)
Ved Leasing gjelder: Etableringsgebyr 990,-, faktureringsgebyr 55,-/mnd, minimumsordre 0,-. Frakt og mva. kommer i tillegg. Forutsetter kredittgodkjenning. Leasing kan velges som en betalingsmåte når du går til kassen.
|
Beskrivelse
Spesifikasjoner
Relaterte produkter

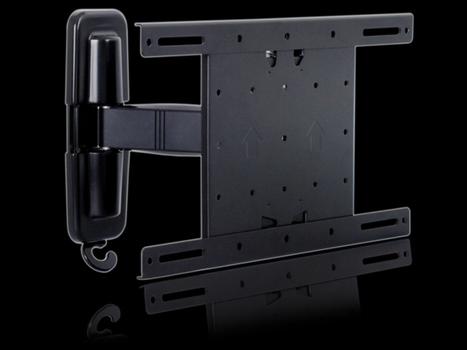

M VESA Flexarm Tilt & Turn II
M VESA Flexarm Tilt & Turn II ends an era of bulky and heavy arms needed to flex, tilt and turn.
The uniquely designed low profile M VESA Flexarm Tilt & Turn III mount fits most 32" and up to 50" flat panels up to 25 kgs. It is very well-suited for those applications where seamless integration counts the most. The M VESA Flexarm Tilt & Turn III is part of the Tilt & Turn Series of fixed, tilt and cantilever mounts offering a unique design without compromising on functionality. Moreover, this wallmount has an extended profile of 225 mm from the wall.
The specifications this product reveals are simply incredible.
Super Slim defines the minimal 47 mm of the low profile to wall. It extends to a maximum of 225 mm proving that this construction is truly flexible being so lightweight. Yet still, produced with high quality materials creating a super strong solution carrying screen up to 25 kgs.
M VESA Flexarm Tilt & Turn III is suitable for a wide range of screens sized 32" and up to 50". The VESA standards that are supported by this mount is 100 / 200 / 300 and up to 400 mm.
- The flexarms nest for a super slim 47 mm mounting profile
- Flex, tilt and turn for an optimal viewing angle at any time
- Tilt easily to 0~15º to reduce glare
- Turn effortlessly to -45~+45 depending on screen size to view from the right angle
- Installation template and tool kit included for simple mounting
- Built in bubble level for accurate mounting
- One person tilt adjustment
Horizonal distance in mm |
| Vertical distance in mm | VESA | 50 | 75 | 100 | 200 | 300 | 400 | 600 |
50 | | | | | | | |
75 | | | | | | | |
100 | | | Yes | Yes | | | |
200 | | | Yes | Yes | Yes | Yes | |
300 | | | | Yes | Yes | Yes | |
400 | | | | Yes | Yes | Yes | |
600 | | | | | | | |
| Specification |
| M VESA Flexarm Tilt & Turn II |
| For screen size: | 32-50" |
| Universal & VESA standard: | 100x100 200x100 200x200 300x300 300x200 400x200 400x400 |
| Article No: | 7 350 022 734 210 |
| Size in mm: | 488x273x47 (W*H*D) |
| Weight: | 3,6 kg |
| Colour: | Black |
| Max load: | 25 kg |
| Distribution package: | 4 pcs |
| Warranty: | 5 years |
| Cable tie: | Included |
| Security lock: | Optional |
| Single box size (WxDxH): | 550x78x340mm |
| Units on a EUR-pallet: | 80 pcs |
| Maksimalvekt (kapasitet) | 25 kg |
| Minimum skjermstørrelse | 81,3 cm (32") |
| Maksimal skjermstørrelse | 127 cm (50") |
| Montasjetype | Vegg |
| Monteringsgrensesnitt, kompatibilitet (min) | 100 x 100 mm |
| Monteringsgrensesnitt, kompatibilitet (maks) | 400 x 400 mm |
| Panelmonterbart grensesnitt | 100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400 |
| Antall skjermer som støttes | 1 |
| Vippjustering | Ja |
| Vippevinkelområde | 0 - 15° |
| Svingvinkel | 90° |
| Distanse til vegg (maks.) | 22,5 cm |
| Distanse til vegg (min.) | 3,7 cm |
| Produktfarge | Sort |
| Bredde | 488 mm |
| Dybde (min.) | 3,7 cm |
| Dybde | 22,5 cm |
| Høyde | 273 mm |
| Vekt | 3,6 kg |
| Pakkebredde | 360 mm |
| Pakkedybde | 560 mm |
| Pakkehøyde | 330 mm |
| Pakkevekt | 3,6 kg |
| Pakketype | Boks |
| Produkter per (indre) fraktkasse | 4 stykker |
