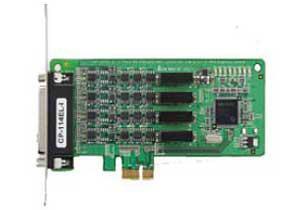

| • Hardware |
| Comm. Controller |
16C550C compatible |
| Bus |
PCI Express x1 |
| Connector |
DB44 female |
| • Serial Interface |
| Number of Ports |
4 |
| Serial Standards |
RS-232/422/485 |
| Max. No. of Boards per PC |
4 |
| • Serial Line Protection |
| ESD Protection |
15 KV on the board |
| Optical Isolation |
2 KV (CP-114EL-I only) |
| • Performance |
| Baudrate |
50 bps to 921.6 Kbps |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, XON/XOFF |
| • Serial Signals |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 |
TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-4w |
TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-2w |
Data+(B), Data-(A), GND |
| • Driver Support |
| Operating Systems |
Windows 2000, Windows XP/2003/Vista/2008/7 x86/x64, DOS, Linux 2.4, Linux 2.6 x86/x64, QNX 6, Windows XP Embedded, SCO OpenServer 5/6, UnixWare 7, Solaris 10 x86/x64 |
| Note |
Please refer to Moxa's website for the latest driver support information. |
| • Physical Characteristics |
| Dimensions |
CP-114EL: 67.21 x 103 mm (2.69 x 4.06 in)
CP-114EL-I: 67.21 x 135 mm (2.69 x 5.31 in) |
| • Environmental Limits |
| Operating Temperature |
0 to 55°C (32 to 131°F) |
| Storage Temperature |
-20 to 85°C (-4 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| • Standards and Certifications |
| EMC |
CE, FCC |
| EMI |
EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B |
| EMS |
EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 (DIPS) |
| Green Product |
RoHS, CRoHS, WEEE |
| • MTBF (mean time between failures) |
| Time |
684,289 hrs |
| Database |
Telcordia (Bellcore), GB |
| • Power Requirements |
| Power Consumption |
CP-114EL: 835 mA @ 3.3 V
CP-114EL-I: 1170 mA @ 3.3 V |
| • Warranty |
| Warranty Period |
5 years |
