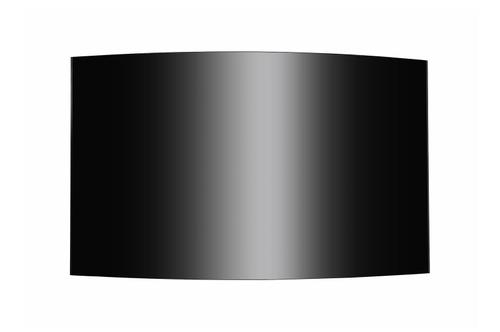

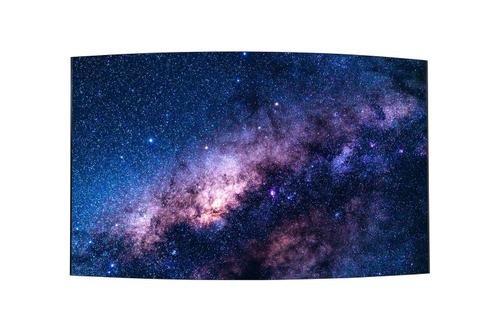

LG Sign Display Curv OLED Land 55" FHD

Flexible Curved Open Frame

• Brightness: 150/400nit (APL 100%/25%)
• Depth: 12.4 mm (Head Only)
• Curvature: ~1,000R(Concave/Convex)
• Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR

• Panel
• Screen Size - 55"
• Panel Technology - OLED
• Aspect Ratio - 16:9
• Native Resolution - 1920x1080 (FHD)
• Refresh Rate - 120Hz
• Brightness - 150/400nit (APL 100%/25%)
• Contrast Ratio - 150,000 : 1
• Color gamut - BT709 120%
• Viewing Angle (H x V) - 178x178
• Color Depth - 10bit(R), 1.07Bilion colors
• Response Time - 1ms (G to G), 8ms (MPRT)
• Surface Treatment - Hard coating (2H)
  Reflectance Typ. 1.2%
• Life Time (Typ.) - 30,000 Hrs
• Operation Hours (Hours / Days) - 18/7 (Moving Content Only)
• Portrait / Landscape - Yes / Yes
• Mechanical Specification
• Bezel Color - Black
• Bezel Width - T/R/L/B : 0.6/6.7/6.7/0.6mm (Off Bezel)
  T/R/L/B : 5.0/7.6/7.6/10.6mm (On Bezel)
• Weight (Head) - 5.8Kg (Head)
  3.5Kg (Signage Box)
• Packed Weight - 17.6Kg
• Monitor Dimensions (W × H × D) - 1,224.9 x 696.2 x 38.0mm (Head, w/Pemnut)
  1,224.9 x 696.2 x 12.4mm (Head, w/o Pemnut)
  701.4 x 1219.7 x 12.4mm (Head, w/o Pemnut)
  413 x 353 x 57.3mm (Signage Box)
• Carton Dimensions (W × H × D) - 1360 x 842 x 252mm
• Special Feature
• Tilt (Facedown) - Yes
• Key Feature (Hardware)
• Internal Memory - 16GB
• Sensor - Temperature Sensor
• FAN - Yes
• Key Feature (Software)
• webOS ver. - webOS4.0
• Embedded CMS - Local Contents Scheduling, Group Manager
• USB Plug & Play - Yes
• Fail over - Yes
• Sync Mode - RS-232C Sync, Local Network Sync
• Video Tag - Yes (4)
• Rotation - Screen Rotation, External Input Rotation
• Gapless Playback - Yes
• Tile Mode Setting - Yes
• Setting Data Cloning - Yes
• SNMP - Yes
• ISM Method - Yes
• Auto Set ID - Yes
• Status Mailing - Yes
• Control Manager - Yes
• 3rd Party Compatibility - Crestron Inside
• Power - PM mode, Wake on LAN
• HDMI-CEC - Yes
• SI Server Setting - Yes
• Pro:Idiom - Yes
• Scan Inversion - Yes
• Connectivity
• Input - HDMI (HDCP1.4), DP (HDCP1.3), DVI-D, RS232C IN, RJ45(LAN), IR IN (External IR Receiver), USB2.0 Type A(2)
• Output - DP Out, Audio Out, RS232C OUT (w/ IR out), RJ45(LAN)
• Environment Conditions
• Operation Temperature - 0 °C to 40 °C
• Operation Humidity - 10 % to 80 %
• Power
• Power Supply - AC 100-240V~, 50/60Hz
• Power Type - Built-In Power
• Power Consumption
• Typ. - 309W
• Max. - 318W
• Power off - 0.5W
• Smart Energy Saving - 1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)
• DPM - 0.5W
• Certification
• Safety - IEC 60950-1 / EN 60950-1 / UL 60950-1
• EMC - FCC Class "A" / CE / KC
• ErP - Yes
• Software Compatibility
S
• SuperSign CMS - Yes (v3.0)
• SuperSign Control / Control+ - Yes (v1.7 / v1.9)
• SuperSign WB - Yes (v3.7.15)
• SuperSign Media Editor - Yes (v3.7)
• LG ConnectedCare - Yes (v2.9)
• Language
• OSD - English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
• Accessory
• Basic - Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(220mmx4ea for connection between panel and Sinage box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Tape(4EA for Cabling), Screw(M3xL4.5,30EA / M3xL5.5,50EA / M3x3.5, 10EA), Shield Cover Assy', Tiling Set Fixer 6EA, Flex Bar 2EA
