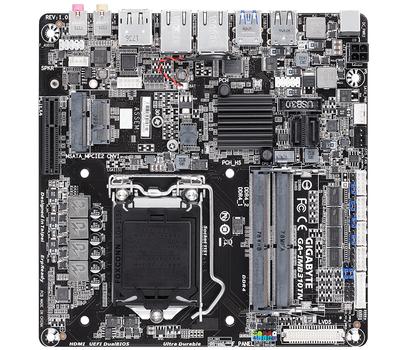

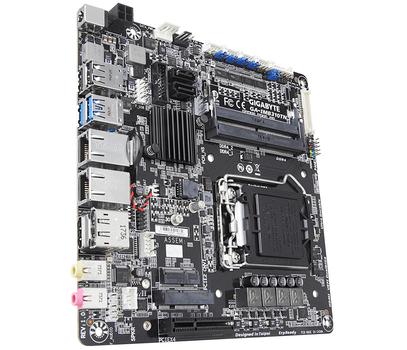

GIGABYTE Motherboard Intel H310 Mini

GA-IMB310TN(rev. 1.0)

• Supports 9th and 8th Generation Intel® Core™ Processors up to 65W
• Dual Channel DDR4 SO-DIMM, 2 DIMMs
• 2 x RS232/422/485, 2 x RS232, Digital I/O 4-in/4-out
• M.2 Socket 1 for PCIe WIFI co-lay with CNVI Hybird E key WIFI
• M.2 Socket 2260/80 Storage support PCIe/SATA Mode
• Mini-PCIe Slot Full size Support mSATA/PCIe mode
• VGA Header for legacy Monitor
• LVDS Header for System Integrated Flat Panel Display Support
• Rear Panel DisplayPort, HDMI 2.0 Ports & D-sub Header for Multi-Display Connection
• Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
• Dual Intel® GbE LAN for WOL and PXE Support
• 4 USB 3.0 and 4 USB 2.0 Ports, USB 3.0 support OTG function
• OP 0~60 degree
• Thin Mini-ITX 170x170mm Form Factor with 12/19~24V DC-In Power Design
• Compatible with GIGABYTE Thin mini ITX Chassis

• Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
• L3 cache varies with CPU

• Intel® H310 Express Chipset

• 2 x DDR4 SO-DIMM socket supporting up to 32 GB of system memory
• Support for DDR4 2133 MHz memory modules

• Integrated Graphics Processor-Intel® HD Graphics support 1.1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
• Maximum shared memory of 1 GB

• Realtek® ALC887 codec
• High Definition Audio
• 2/4/5.1/7.1-channel

• 2 x Intel® GbE LAN chips (10/100/1000 Mbit)

• Infineon chip, supporting TPM 2.0

• 1 x PCI Express x4 slot
  (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
• 1 x M.2 Socket 1 connector for an Intel® CNVi or a PCIe wireless module (CNVI)
• 1 x full size Mini PCIe connector (MSATA_PCIE)
  * The MSATA_PCIE connector can also be used as an MSATA connector.
  (The Mini PCIe connector conforms to PCI Express 2.0 standard.)

• Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) on the back of the motherboard
  • 2 x SATA 6Gb/s connectors

• Chipset:
  • 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

• 1 x 4-pin ATX 12V power connectors
• 1 x AT/ATX mode switch jumper
• 1 x CPU fan header
• 1 x system fan headers
• 1 x M.2 Socket 3 connector on the back of the motherboard
• 2 x SATA 6Gb/s connectors
• 1 x MSATA connector
• 1 x USIM connector on the back of the motherboard
• 1 x SATA power connector
• 1 x front panel header
• 1 x front panel audio header
• 1 x battery power cable connector
• 1 x USB 3.1 Gen 1 header
• 1 x USB 2.0/1.1 header
• 4 x serial port headers
• 4 x serial port power select jumpers
• 1 x D-Sub port header
• 1 x GPIO header
• 1 x LVDS header
• 1 x LVDS drive voltage jumper (LCD_VCC)
• 1 x flat panel display header (FPD)
• 1 x flat panel display power select jumper (FPD_PWR)
• 1 x flat panel display switch header (MON_SW)
• 1 x backlight switch header (BL_SW)
• 1 x speaker header (SPKR)
• 1 x buzzer header (SPEAKER)
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header
• 1 x I2C
• 1 x SMBUS

• 1 x DC-In power connector
• 1 x HDMI port
• 1 x DisplayPort
• 2 x USB 3.0 port
• 2 x USB 2.0/1.1 ports
• 2 x RJ-45 ports
• 2 x audio jacks (Line Out, Mic In)

• iTE® I/O Controller Chip

• System voltage detection
• CPU/System temperature detection
• CPU/System fan fail warning
• CPU/System fan speed detection
• CPU/System overheating warning
• CPU/System fan speed control

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for @BIOS
• Support for Q-Flash

• Norton® Internet Security (OEM version)

• Support for Windows 10 64-bit

• Thin Mini-ITX Form Factor; 17.0cm x 17.0cm

• 0°C to +60°C
