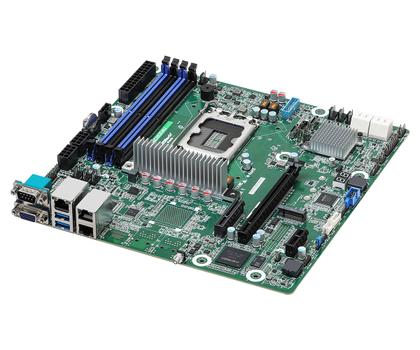

ASROCK Motherboard Intel C262 Lga
|
|
ASROCK Motherboard Intel C262 Lga
-
Prosessorsokkel
LGA 1700 (kontakt V)
-
Chipset
Intel C262
-
M.2 Slot
1
-
Minnespor
4 x DIMM, DDR5
-
Maksimal RAM-frekvens
4.4GHz
-
Støttet maksimalt minne
128GB
-
Formfaktor
Micro ATX
|
EC262D4U
Features:
- Micro-ATX (9.6" x 9.6")
- Supports Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T processors
- 4 DIMM slots (2DPC), supports DDR5 ECC UDIMM
- 1 PCIe5.0 x16, 1 PCIe4.0 x4, 1 PCIe4.0 x1
- 2 OCuLink
- Supports 1 M.2 (PCIe4.0 x4)
- Up to 8 SATA 6Gb/s
- 2 RJ45 (1GbE) by Intel® i210
- Remote Management (IPMI)
Specifications:
Physical Status
- Form Factor Micro-ATX
- Dimensions 9.6'' x 9.6'' (244 mm x 244 mm)
Processor System
CPU - Supports Intel® Xeon® 6300-series, Xeon® E-2400 series, and Pentium® Gold G7400/G7400T processors
- Socket Single Socket LGA 1700
- Thermal Design Power 95W
- Chipset Intel® C262
System Memory
- Supported DIMM Quantity 4 DIMM slots (2DPC)
- Supported Type Supports DDR5 288-pin ECC UDIMM
- Max. Capacity per DIMM 32GB
- Max. DIMM Frequency 4400MT/s (2SPC - 1DIMM) / 4000MT/s (2SPC - 2DIMM 1R) / 3600MT/s (2SPC - 2DIMM 2R)
- Voltage 1.1V
PCIe Expansion Slots (SLOT7 close to CPU)
- PCIe x 16 SLOT6: PCIe5.0 x16 [CPU]
- PCIe x 4 SLOT7: PCIe4.0 x4 [CPU]
- PCIe x 1 SLOT4: PCIe4.0 x1 [PCH]
TPM
- TPM support 1 (13-pin, SPI)
Other PCIe Expansion Connectors
- M.2 slot 1 M-key (PCIe4.0 x4); support 2280/2260/2242/2230 form factor [PCH]
- OCuLink
- 1 OCuLink (PCIe4.0 x4) [CPU]
- 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH]
SATA/SAS Storage
- PCH Built-in Storage Intel® C262 (8 SATA 6Gb/s; RAID 0/1/5/10): 4 SATA 7-pin, 1 OCuLink
Ethernet
- Additional GbE Controller 2 RJ45 (1GbE) by Intel® i210
Server Management
- BMC Controller ASPEED AST2600: iKVM, vMedia support
- IPMI Dedicated GLAN 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F
Graphics
- Controller ASPEED AST2600: 1 DB15 (VGA)
Rear I/O
- UID Button/LED 1 UID button w/ LED
- Video Port 1 DB15 (VGA)
- Serial Port 1 DB9 (COM)
- USB 3.2 Gen1 Port 2 Type-A (USB3.2 Gen1)
- RJ45 2 RJ45 (1GbE), 1 dedicated IPMI
Internal Connector/Headers
- Power Connector 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
- Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
- System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
- VGA header 1
- Speaker Header 1 (4-pin)
- Buzzer 1
- Fan Header 7 (4-pin)
- Thermal Sensor Header 1
- TPM Header 1 (13-pin, SPI)
- SGPIO Header 1
- SMBus header 1
- PMBus header 1
- IPMB Header 1
- Clear CMOS 1 (contact pads)
- USB 3.2 (Gen1) Header 1 header (19-pin, 2 USB3.2 Gen1)
- USB 2.0 Header 1 header (9-pin, 2 USB2.0)
- Type A USB 2.0 Port 1 vertical Type-A (USB2.0)
- NMI Header 1
LED Indicators
- Standby PWR LED 1 (5VSB)
- 80 Debug Port LED 1
- Fan Fail LED 7
- BMC heartbeat LED 1
System BIOS
- BIOS Type AMI 256Mb SPI Flash ROM
- BIOS Features Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash
Hardware Monitor
- Temperature CPU, MB, Card side, VR, DDR5, PCH, M.2, TR1 Temperature sensing
- Fan
- Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- Fan Multi-Speed Control
- Voltage 3VSB, 5VSB, CPU_VCORE, VCCIN_AUX,VDD2, 1.05V_PCH, 0V82SB_PCH, 1V8SB, VCCSA, BAT, 3V, 5V, 12V
Supported OS
OS
- Microsoft® Windows:
- Windows® Server 2022
- Azure Stack HCI
- Linux:
- RHEL 8.5
- SLES 15 SP3
- Ubuntu 21.04 LTS
- Hypervisor:
- VMware ESXi 8.0 u1
- Linux KVM (Linux OSes)
- Hyper-V (Windows® Server)
Environment
- Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
- Humidity Non operation humidity: 20% ~ 90% ( Non condensing)
