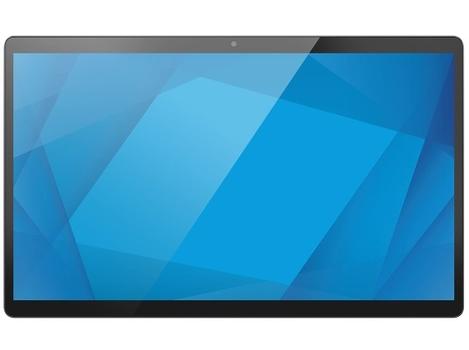

ELO POS Z10 Win10 Intel Elkhart Lake J6426 8GB 3200MHz DDR4 SO-DIMM 128GB M.2 NVME SSD 15.6in IN

I-Series 3 Slate with Intel® Win 10, 8GB

• Brilliant, beautiful and razor thin.
• Interactive signage has never looked so good.
• Create your POS system.
• Transform the I-Series 3 Slate it into a powerful, industrial-design POS system that scales with your business.
• Reliable, security and performance.
  • Built with the reliability-tested performance and security of Intel 11th Generation processors, integrated Trusted Platform Modules and the Windows 10 operating system, the I-Series 3 Slate delivers the dependability businesses need.
• Support for Linux.
  • For added flexibility, the I-Series 3 Slate offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
• Bridge the gap between Windows and Android.
  • Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.

• Dark Gray

• PCAP (TouchPro® Projected Capacitive) - 10 Touch

• Intel Elkhart Lake J6426

• Intel UHD Graphics

• AMI

• 8GB 3200MHz DDR4 SO-DIMM on 1 slot (Expandable to 32GB maximum on 1 slot)

• 128GB M.2 NVME SSD 72 TBW

• 2.0

• 15.6'' diagonal, Active matrix TFT LCD (LED)

• 16:9

• 13.55" x 7.62" / 344.2 mm x 193.5 mm

• 1920 x 1080 @ 60Hz

• 16.2 million

• LCD panel: 300 nits
• TouchPro PCAP: 255 nits

• 25 msec

• 1000:1

• Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

• 8MP
• Max Resolution: 1920x1080 30fps
• Auto Focus

• Display Head Interface:
  • USB-C Connector
  • Supports USB 2.0/3.0, DP output
  • (Requires 20V/20W USB-C Power Delivery 2.0 if not using IO Hub for power)
• I/O Hub:
  • DC Input
  • 4 x USB-A 3.0
  • RJ45 Ethernet LAN (Gigabit) (wo Wake on Lan at S5 support)

• 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz

• Bluetooth 5.2

• 2T2R design

• Digital Microphone

• 2 x 2W internal speakers

• No OS
• Windows 10 IoT Enterprise LTSC 64-bit

• Windows 10 - 36 Language groups

• External 19VDC universal-type power supply brick
• AC input voltage: 100-240 VAC
• Input frequency: 50-60 Hz
• Maximum output power: 65W

• ON: 30W
• SLEEP: <2.0W
• OFF: <0.5W

• Without VESA Adapter: 14.3" x 8.8" x 0.6" / 362.8 mm x 223.4 mm x 15.3 mm
• With VESA adapter: 14.3" x 8.8" x 0.8" / 362.8 mm x 223.4 mm x 20.2 mm

• 18.11" x 12.64" x 7" / 460 mm x 321 mm x 178 mm

• 3.53 lbs / 1.6 kg

• 8.81 lbs / 4 kg

• 0°C to 35°C / 32°F to 95°F

• -20°C to 60°C / -4°F to 140°F

• Operating: 10% to 90%
• Storage: 0% to 95% (38.7°C max wet bulb temperature)

• Energy Star 8.0

• UL/cUL, FCC, CE, CB, NOM, RCM, VCCI, Argentina S-Mark, CCC, SRRC, ANATEL, UKCA

• CR2450 lithium metal battery

• 50,000 hours demonstrated

• 75mm VESA mount

• 3-year

• I Series Slate
• IO Hub
• North America Power Cord
• European Power Cord
• 65W Power Adapter
• Quick Installation Guide (QIG)
