ELO 2703LM 27-inch wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-touch, DICOM 14, USB and Serial Touch Interface, Anti-glare, Zero-bezel, VGA and HDMI Video Interface, White
Forsiden
Skjerm/TV
Skjerm
ELO 2703LM 27-inch wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-touch, DICOM 14, USB and Serial Touch Interface, Anti-glare, Zero-bezel, VGA and HDMI Video Interface, White
|
|
ELO 2703LM 27-inch wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-touch, DICOM 14, USB and Serial Touch Interface, Anti-glare, Zero-bezel, VGA and HDMI Video Interface, White
-
Skjermstørrelse
27"
-
Oppløsning
1920 x 1080
-
HD
Full HD
-
USB-C
0
-
DVI
0
-
DP
0
-
HDMI
1
-
Berøringsskjerm
Ja
-
Høyttalere
Ja
-
Skjermform
Flat
-
Høydejustering
Nei
-
Svivel
Nei
-
Svingtapp
Nei
-
Garanti / Måneder
36
-
Bruksområde
Personal display
LEASING
(ekskl. mva)
Ved Leasing gjelder: Etableringsgebyr 990,-, faktureringsgebyr 55,-/mnd, minimumsordre 0,-. Frakt og mva. kommer i tillegg. Forutsetter kredittgodkjenning. Leasing kan velges som en betalingsmåte når du går til kassen.
|

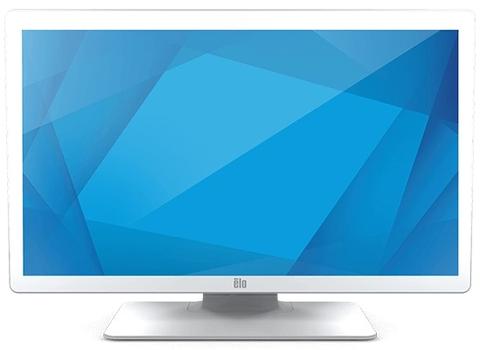

2703LM 27" Medical Grade Touchscreen Monitor
TouchPro PCAP White with stand
E659793
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
Specifications:
Enclosure Color
Touch Technology & Capacity
- PCAP (TouchPro® Projected Capacitive) - 10 Touch
Diagonal Size
- 27'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
Active Area
- 23.54" x 13.24" / 597.88 x 336.31 mm
Resolution
Other Supported Resolutions
- 640 x 480 60Hz
- 640 x 400 70Hz
- 720 x 400 70Hz
- 800 x 500 60Hz
- 800 x 600 56, 60Hz
- 1024 x 768 60Hz
- 1280 x 720 @ 58Hz, 60Hz
- 1280 x 800 60Hz
- 1280 x 1024 60Hz
- 1366 x 768 60Hz, 60Hz RB
- 1440 x 900 60Hz, 60Hz RB
- 1680 x 1050 60Hz, 60Hz RB
Viewing Angle
- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
Brightness (typical)
- LCD Panel: 300 nits
- TouchPro PCAP: 270 nits
Response Time-total (typical)
Contrast Ratio
Touch Interface
Surface Treatment
On Screen Display
- Controls: Menu, Up, Down, Select
- Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF, Touch Thru, Touch Interface, DICOM
- Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
- Lockouts: OSD, Power
I/O Ports
- VGA (RS232 touch supported via E810917)
- HDMI
- Combo Jack
- DC jack
- USB Type B
- USB 2.0 Type A
- 4x Micro USB
Speakers
- Two x 2W internal speakers
Input Video Format
- VGA (VGA DE-15 (DB-15) Male connecter cable included)
- HDMI (HDMI cable included)
Input Video Frequency
- Horizontal: 30 – 82KHz
- Vertical: 50 - 75Hz
Power Consumption (Typical)
- Monitor + AC/DC adapter
- ON (Default - 75% Brightness): 17.37 W
- ON (Typical - 100% Brightness): 22.41W
- SLEEP: 1.006 W
- OFF: 0.24 W
Input Voltage
- 12VDC +/- 5%
- 100-240VAC, 50/60Hz
Input Connector
- Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
Peripheral Mounting
- 4x Micro USB side ports (Top, Bottom, Left, Right)
Monitor Dimensions (without Stand)
- 15.52" x 25.50" x 1.77" / 394.1 mm x 647.6 mm x 44.9 mm
Monitor Dimensions (with Stand)
- 17.75" x 25.50" x 9.17" / 450.9 mm x 647.6 mm x 233 mm
Shipping Box Dimensions
- With Stand: 22.05" x 30.08" x 12.68" / 560 mm x 764 mm x 322 mm
- Without Stand: 20.47'' x 30.31'' x 7.36'' / 520 mm x 770 mm x 187 mm
Weight (Unpackaged)
- With Stand: 22.64 lbs / 10.27 kg
- Without Stand: 15.72 lbs / 7.13 kg
Weight (Packaged)
- With Stand: 31.48 lbs / 14.28 kg
- Without Stand: 22.95 lbs / 10.41 kg
Operating Temperature
- 0°C to 40°C / 32°F to 104°F
Storage Temperature
- -20°C to 60°C / -4°F to 140°F
Humidity
- Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
Sealability
- Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
- 50,000 hours demonstrated
Mounting Options
- VESA 4-hole 100mm mounting interface on rear of unit
Warranty
Regulatory approvals and declarations
- Canada CUL, IC
- China CCC
- Europe CE
- United Kingdom UKCA
- Korea KCC
- Taiwan BSMI
- United States FCC, UL
- Japan VCCI
- International CB
- Australia RCM
- Russia EAC
- Mexico CoC
- RoHS, China RoHS, WEEE, REACH
- India BIS
DICOM
- DICOM Part 14 (AAPM secondary display)
Ingress Protection
Impact Protection
What's in the Box
- Touchmonitor
- Quick Install Guide
- 3x Tie wraps
- VGA cable
- HDMI cable
- Touch USB cable
- Audio cable
- Power brick (E323104)
- NA Power cable
- EU Power cable
- EEI Label
- DICOM calibration sheet
- 4 x VESA Screws (only for E381654 and E381844)
- 4 x rubbers (only for E381654 and E381844, affix to VESA holes)
- 2 x Cable cover screws
